TAP Air Cargo's ULD equipments

TAP Air Cargo presents itself as an excellent air cargo carrier, not only for its fleet of aircrafts, but also for the ULD equipments it offers for transporting your cargo.

Check out TAP ULD equipments

Regardless of the nature and size of the material you plan to ship, we offer completely adequate and flexible air cargo solutions that make the most of the available space.

Standard equipments

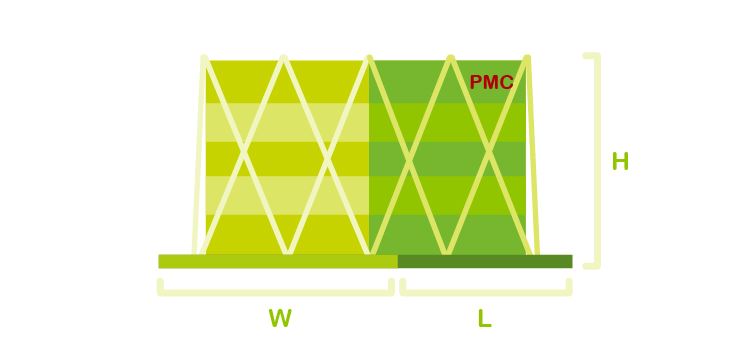

PMC PALLET

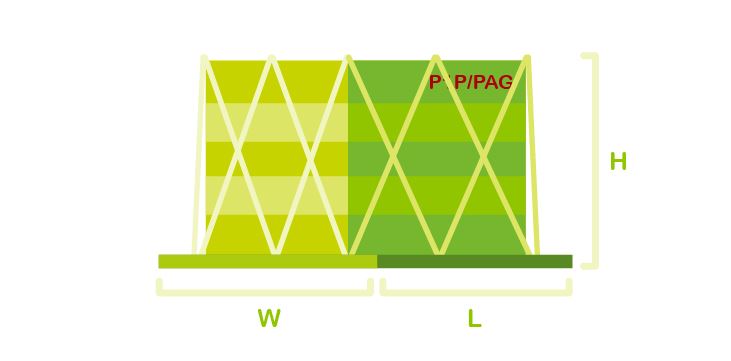

P1P / PAG

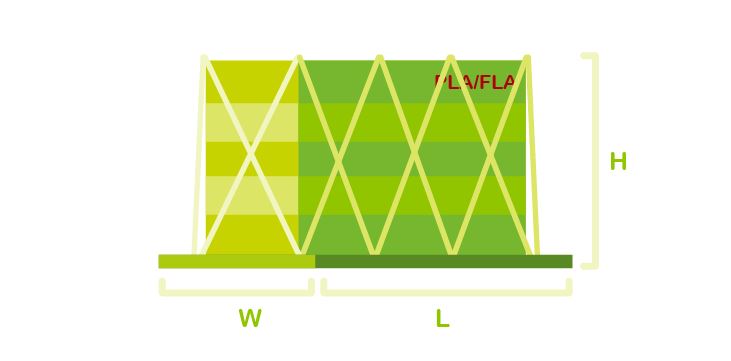

PLA / FLA PALLET

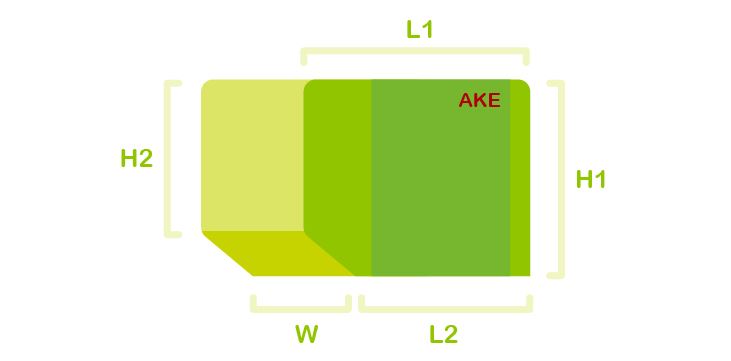

AKE CONTAINER

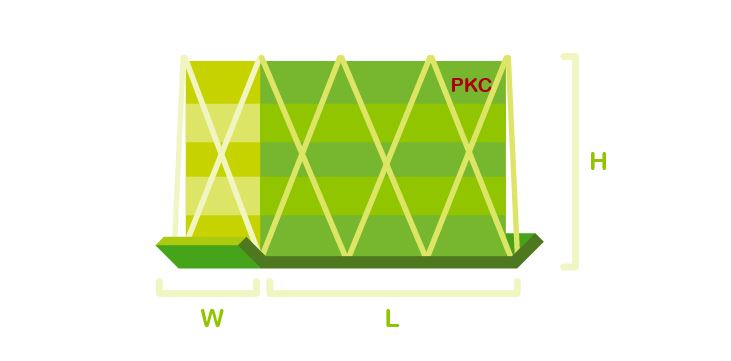

PKC PALLET

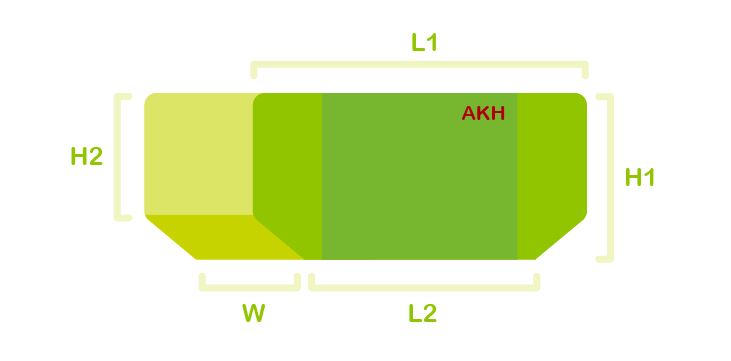

AKH CONTAINER

Temperature controlled equipment +/- (ACT)

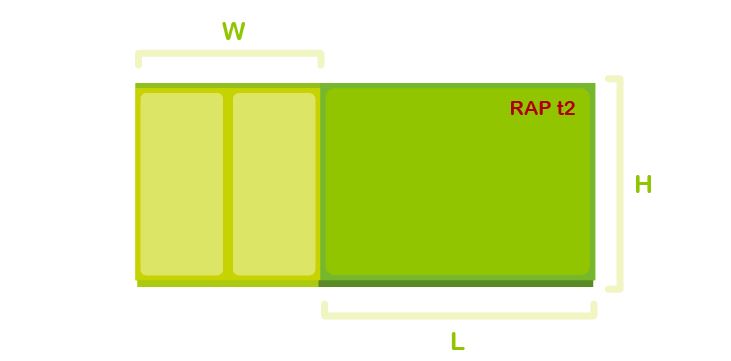

RAP T2 CONTAINER
Use: A330
Primary load space: L 253,5 cm x W 206,5 cm x H 142 cm
Additional loading space under refrigeration unit: L 46 cm x W 206,5 cm x H 92,5 cm
Internal hub dimensions (volume) for refrigerated load: 8,22 m³
Outer hub dimensions (volume): 11,2 m³
External dimensions: L 317 cm x W 223 cm x H 162 cm
Tare weight: 450 kg
Gross weight: 6 033 kg maximum
Net weight: 5 583 kg maximum

Other features of this equipment:
- Refrigeration system;
- Thermostat-controlled heat inverter, powered by size D alkaline batteries and using dry ice as refrigerant;
- Maximum ice deposit capacity when using ice blocks: up to 300 kg (up to 50% less capacity if dry ice tablets are used);
- Cooling range: from -20ºC to +20°C (desired container temperature);
- Operation period without freezing and battery change: up to 72 hours;
- Requirements in front of the fan area: see operations (L 253,49 cm x W 206,5 cm x H 141,99 cm);
- See manual for more information.

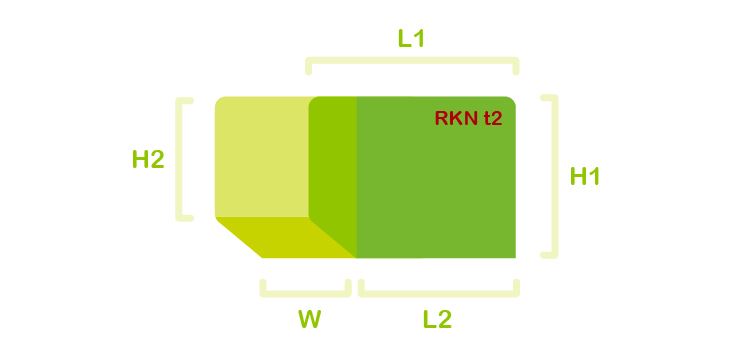

RKN T2 CONTAINER
Use: A330
Dry ice deposit: L 42,9 cm x W 135,4 cm x H 85,9 cm
Internal cube dimensions (volume) for refrigerated load: 2,93 m³
Outer hub dimensions (volume): 4,8 m³
External Dimensions: L 200 cm x W 153,5 cm x H 162 cm
Tare weight: 265 kg
Gross weight: 1 588 kg maximum, including dry ice
Net weight: 1 323 kg maximum

Other features of this equipment:
- Refrigeration system;
- Thermostat-controlled heat inverter, powered by size D alkaline batteries and using dry ice as refrigerant;
- Maximum ice deposit capacity when using ice blocks: up to 180 kg (up to 50% less capacity if dry ice tablets are used);
- Cooling range: from -20º C to +20° C (desired container temperature);
- Operation period without freezing and battery change: up to 72 hours;
- Requirements in front of the fan area: see operations (L 141,5 cm x W 135,4 cm x H 135,9 cm);
- See manual for more information.

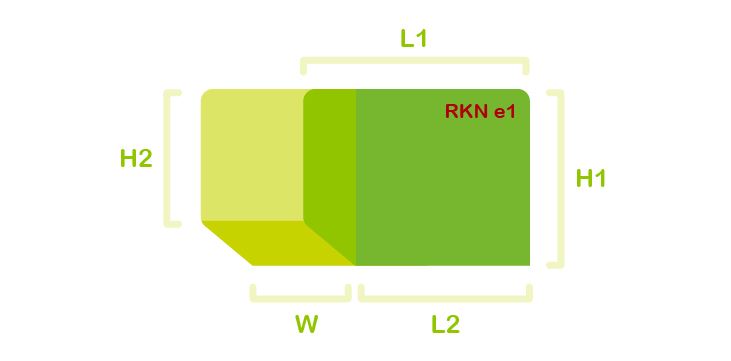

RKN E1 CONTAINER
Use: A330
Internal dimensions: L 134 cm x W 131,9 cm x H 131,5 cm
External dimensions: L 200 cm x W 153,5 cm x H 162 cm
Internal hub dimensions (volume): 2,3 m³
External hub dimensions (volume): 4,8 m³
Door opening: L 134 cm x H 131,5 cm
Tare weight: up to 635 kg
Gross weight: 1 588 kg maximum
Net weight: up to 953 kg maximum

Other features of this equipment:
- Refrigeration system;
- Thermostat-controlled air conditioning system with compressor cooling and electric heating, powered by rechargeable batteries;
- Recharge power supply: 100-240 V AC and 50-60 Hz;
- Maximum power consumption when charging: 1 850 W;
- Maximum charging time: 8 hours;
- Temperature range set by the container: from 0°C to +25°C;
- Temperature tolerance in cargo space:

  at a temperature set between 0° to +10°C: +/- 3°C;

  at a temperature set between +10°C to +25°C: +/- 5°C.
- Autonomy at container temperature set at +5°C: 30 hours at an ambient temperature of -10°C or +30°C;
- Operating range at container set temperature with temperature set to +5°C: ambient conditions between up to -20°C to +40°C;
- Storage temperature range: from -40°C to +50°C.

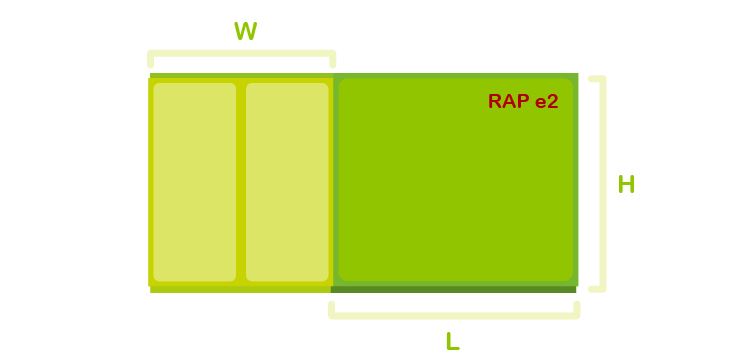

RAP E2 CONTAINER
Use: A330
Internal dimensions: L 246,5 cm x W 205,5 cm x H 126 cm
External dimensions: L 317,5 cm x W 223,5 cm x H 162,6 cm
Internal hub dimensions (volume): 6,38 m³
Outer hub dimensions (volume): 11,5 m³
Door opening: L 205,5 cm x H 126 cm
Tare weight: 1 100 kg
Gross weight: 6 033 kg maximum
Net weight: 4 933 kg maximum

Other features of this equipment:
- Refrigeration system;
- Thermostat-controlled air conditioning system with compressor cooling and electric heating, powered by rechargeable batteries;
- Recharge power supply: 100-240 V AC and 50-60 Hz;
- Maximum power consumption when charging: 1 850 W;
- Maximum charging time: 12 hours;
- Temperature range set by the container: from 0°C to +25°C;
- Temperature tolerance in cargo space:

  at a set temperature between 0°C to +10°C: +/- 3°C;

  at a set temperature between +10°C to +25°C: +/- 5°C.
- Autonomy at container temperature set at +5°C: up to 30 hours;
- Operating range at container set temperature with temperature set at +5°C: ambient conditions between up to -25°C to +40°C;
- Storage temperature range: from -40°C to +50°C.

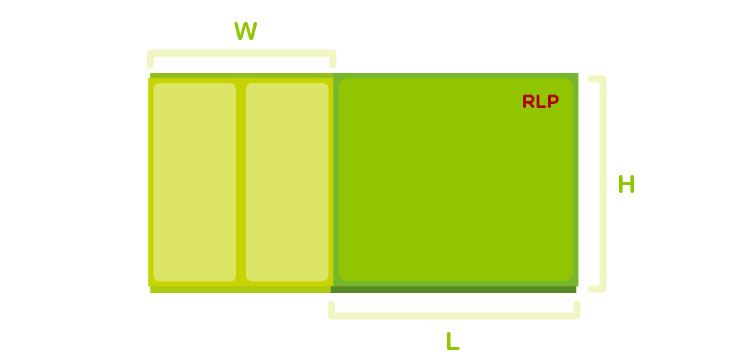

RLP CONTAINER
Use: A330
Internal dimensions: L 247,5 cm x W 135,4 cm x H 132 cm
External dimensions:: L 317,5 cm x W 153,4 cm x H 162,6cm
Internal hub dimensions (volume): 4.4 m³
Outer hub dimensions (volume): 7.9 m³
Door opening: L135,4 cm x H 132 cm
Tare weight: 880 kg
Gross weight: 3 175 kg
Netweight: 2 295 kg

Other features of this equipment:
- Refrigeration system;
- Thermostat-controlled air conditioning system with compressor cooling and electric heating, powered by rechargeable batteries;
- Recharge power supply: 100-240 V AC and 50-60 Hz, Max 16A;
- Maximum charging time: 11 hours;
- Autonomy at container temperature set at +5°C and ambient temperature is +20ºC: up to 170 hours;
- For an additional 24 h battery time the typical charging time is 1.5 hours.
- Container temperature set point: 5 and 20 °C
- Set point accuracy: ±2 for set point 5 °C / ±3 °C for set point 20 °C;
- Operational at temperatures between -32 °C and +49 °C;
- Storage temperature range: from -40°C to +50°C.
